Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Place of Origin : Jiangsu, China

Brand Name : Juneng

Certification : CE / ISO

MOQ : 1 set

Price : $30,000-40,000 / set

Voltage : 220V / 380V / 460V

Power : 15000W

Dimensions : 1800*1200*2030 mm

Weight : 2000 KG

Capacity : 3000-7000 l/h

Rotation speed : 6600 rpm

Material : SUS304/SUS316

Inlet pressure : 0.05 Mpa

Outlet pressure : 0.1-0.4 Mpa

Motor power : 15 Kw

Core components : PLC, Bearing, Motor

Treatment capacity : 3000-7000 L/H

Noise level : Lower

Drum material : SUS304/SUS316

Base material : Steel with damping rubber

Contact Now

Product Description

Product Application

Juneng dairy separator has such features as large capacity, good deoiling performance, high efficiency and lower energy consumption. The advanced inlet and outlet design guarantees soft treatment during the whole separation process, preventing destructive air from entering and ensuring product quality.

The milk has so wide diversity, even the simplest milk sold on the market contains different fat contents. If list, there are so many types of dairy products to be mentioned, such as butter, cheese, quark, yogurt etc.

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Main Features

1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, Perfect separating affection.

Model
Treatment capacity (L/H)
Inlet Pressure (Mpa)
Outlet pressure (Mpa)
Motor power (Kw)
Weight (Kg)
Outline dimension (mm)
DHNZ204
1000-1500
0.05
0.1-0.2
4
520
810*850*1350
DHNZ360
1000-3000
0.05
0.1-0.3
7.5
1200
1530*1150*1500
DHNZ470
3000-7000
0.05
0.1-0.4
15
1600
1800*1200*2030
DHNZ550
5000-10000
0.05
0.1-0.4
22
2300
1950*1550*1960
Detailed Images
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

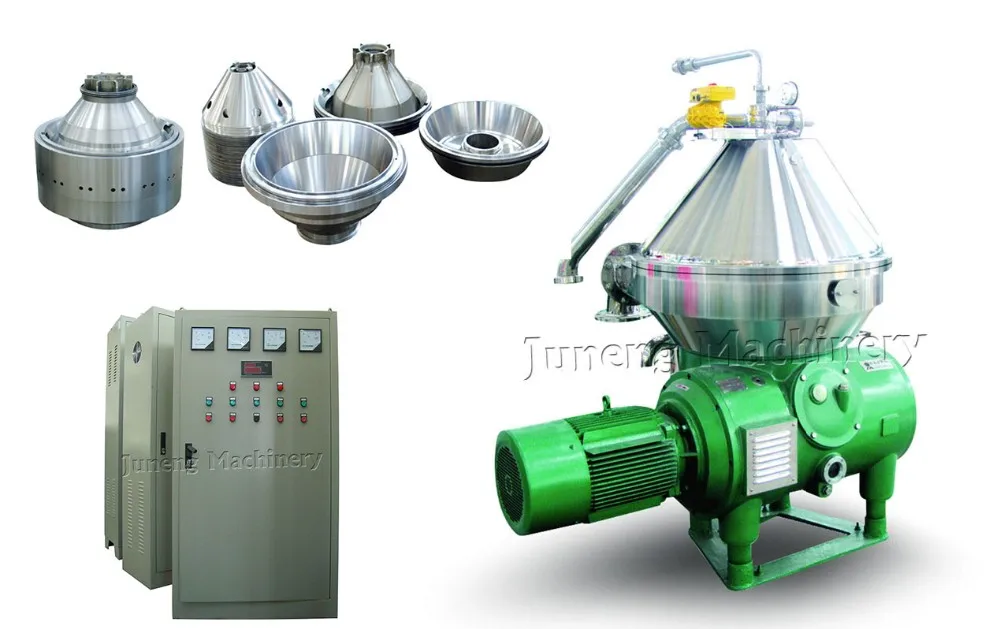

Machine Parts

Name: Disc

Brand: Juneng

Original: China


Domestic famous engines

Main Parts

Name: Shaft
Brand: Juneng
Original: China


The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.

The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Machine Parts

Name: Drum
Brand: Juneng
Original: China


The drum is a component to separate material and rotates at high speed, is the heart of the separator.

Main Features

Name: Equipment Base
Brand: Juneng
Original: China


Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Test & Inspection

1. Material Test Report 2. Magnetic Particle Examination

3. Nondestructive Examination 4. Liquid Penetrant Examination

5. Dynamic Balancing Test 6. Radiographic Examination

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Our Service
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

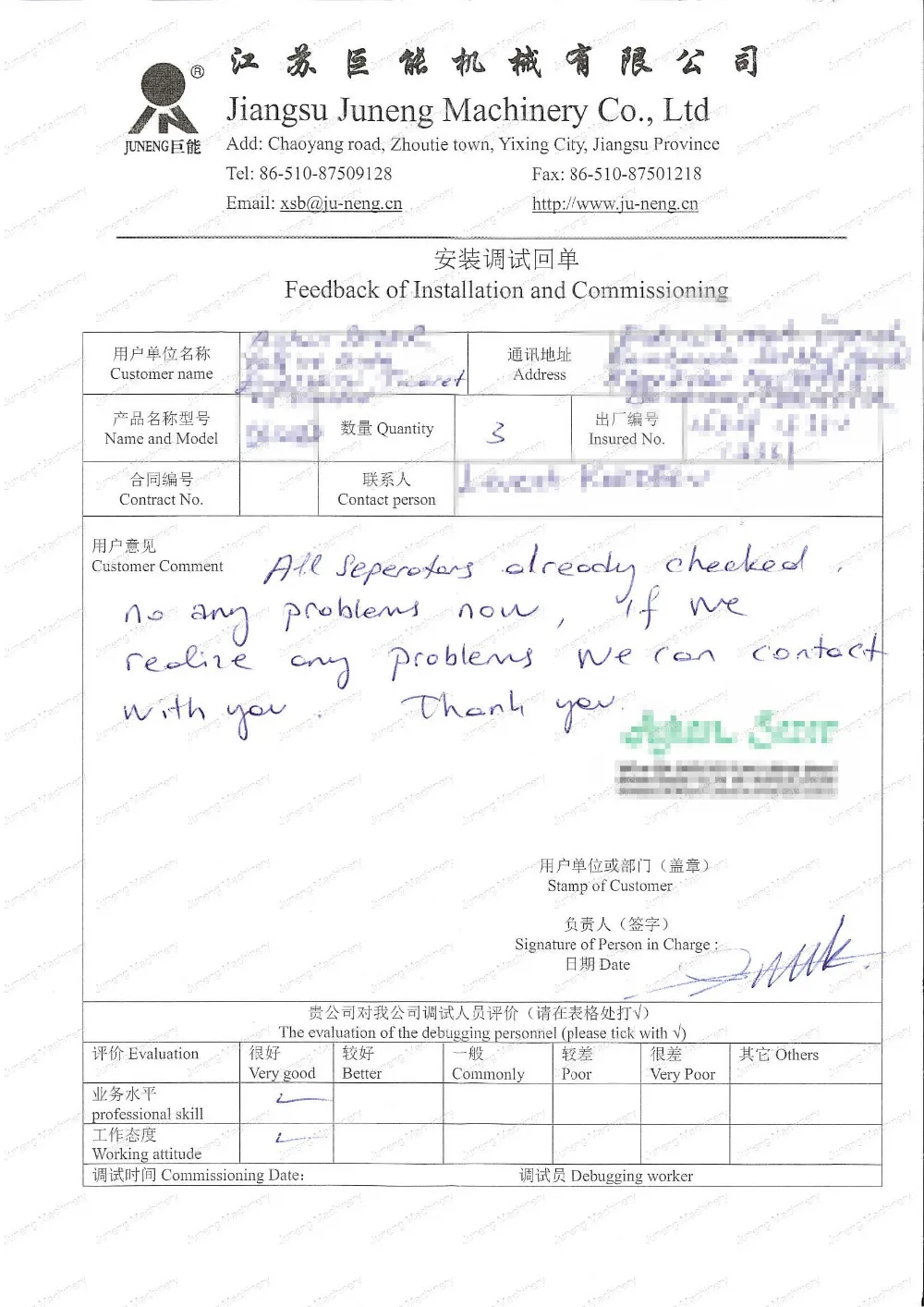

Please rate our on-site service

We establish a divisin to support the on-site service domestic and overseas. Once ordered,our technical engineer will help to install the equipment on-site to ensure smoothy operation and train the operator to use the machine.

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Certifications
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Exhibition

Exhibitions We Attended.

We have attended various exhibitions during these years, such as ACHEMA, AchemAsia 2019, ProFood Tech --The Food & Beverage Processing Event, 21st Interphex Week Japan, Spring and Autumn Conton Fair and other domestic fairs.

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Packing & Delivery
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
